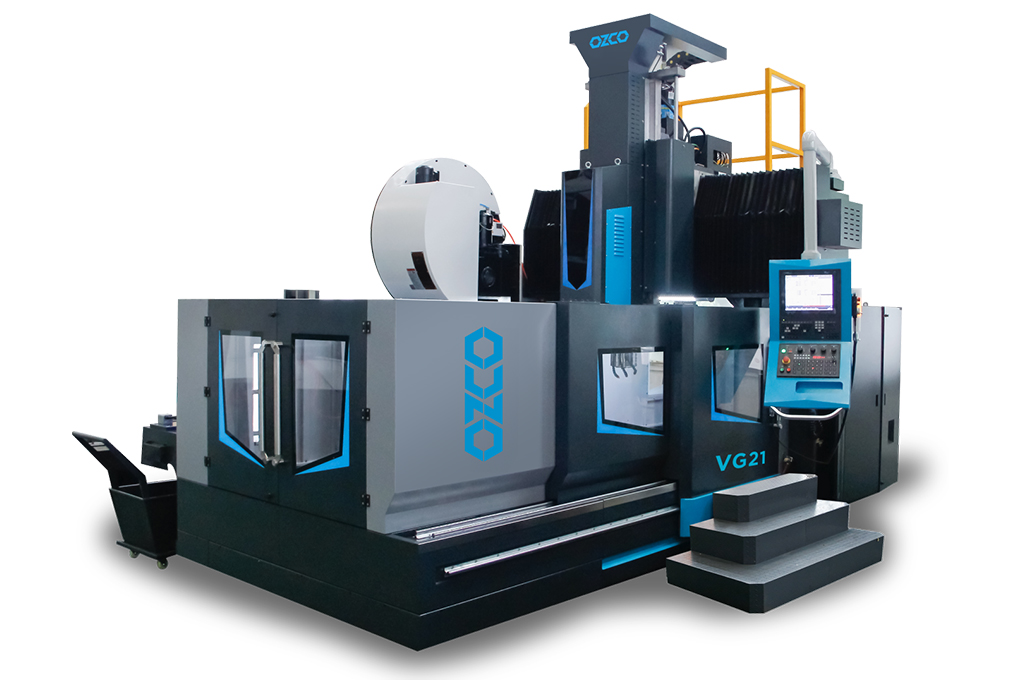

VG21 CNC Double Column Vertical Machining Center
- Technical Detail
- Description
- Involvement of Shipment
- Optional Accessories
| VG21 CNC Double Column Vertical Machining Center | |
|---|---|
| Main Motor Power | 15/18,5 kW w |
| Table Size | 2500x1200 mm |
| T-slot Size | 22/7/140 mm |
| Max. Table Capacity | 6000 kg |
| X,Y,Z Travel | 2600,1400,800 mm |
| Distance Between Two Gantry Columns | 1400 mm |
| Spindle-Table Distance | 150-900 mm |
| Spindle Speed | 6.000 rpm |
| Spindle Taper | BT50 |
| Spindle Diameter | 160 mm |
| X,Y,Z Rapid Feed Speed | 15,15,12 m/min |
| Cutting Feet Speed | 1-8000 mm/min |
| Magazine Capacity | 30T Disc Type ATC |
| Control Unit | Mitsubishi M80A |
| Driver and Encoder | Mitsubishi |
| Main Motor Torque Power | 143\236Nm |
| X axis Linear Roller Guideway Size | RGW45CC4R*2 |
| Y axis Linear Roller Guideway Size | RGH45CA3R/ RGW45CC2R |
| Leadscrew Diameter X | GQ50x10 |
| Leadscrew Diameter Y | GQ50x10 |
| Leadscrew Diameter Z | GQ50x10 |
| Positioning Accuracy X/Y/Z | 0,016/0,015/0,015 |
| Repeatability Positioning Accuracy X/Y/Z | 0,012/0,01/0,01 |
| Machine Dimensions | 6300x3800x4700 |
| Weight | 15.000 kg |
Main Components
• Ball screws (HIWIN, Taiwan)
• 3 Axes roller type linear guideways (HIWIN, Taiwan)
• Bearings (NSK, Japan)
• Spindle (ROYAL, Taiwan)
• Central lubrication unit (HERG, Japan)
• Pneumatic unit (AIRTAC, Taiwan)
• Electrical system (SCHNEIDER, France)
• Tool magazine ARM type (POJU, Taiwan)
• Mitsubishi M80A controller with
• 15" LCD screen control panel for all models
• 20 bar CTS (Coolant Through Spindle)
• Air gun and coolant gun
• Rigid tapping
• M30 automatic power off
• Full moulding package in controller
• Heat exchanger on electrical cabinet
• Leveling screws and pads
• Worklight
• Alarm light 3-colored
• Central lubrication unit
• 3 Axes roller type linear guideways
• Telescopic cover&pretensioned for 3-axes
• Spindle head coolant system
• Air through spindle
• RS232 interface
• P05 10.000 soft corners function in controller
• MPG Handwheel
• Fully enclosed cabin
• 2 spiral type + 1 chain type conveyor
• Ready electrical harness system for cnc rotary table
• CE modification, transformer for 380V/50Hz
• Oil skimmer to separate guideway oil and coolant
• Heidenhain linear scales
• Fagor linear scales
• Automatic rectangular milling head
• 90° milling head
• Tool automatic setting
• Vertical/Horizontal tool magazine
• CNC rotary table
• ZF gear box
• 50 bar CTS (Coolant Through Spindle)
