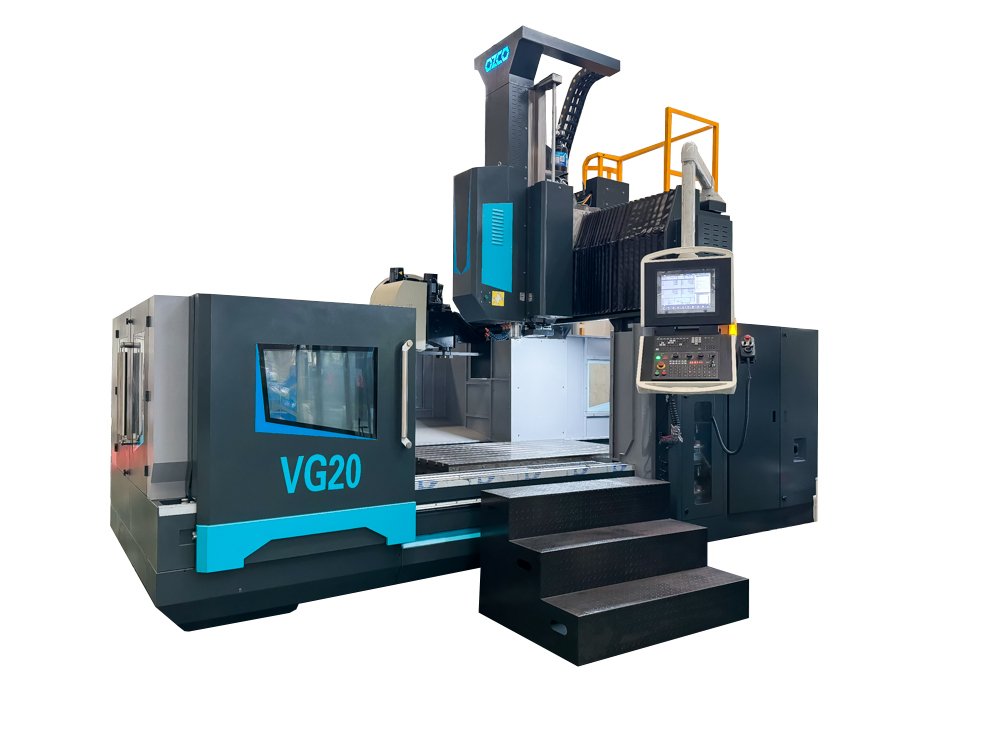

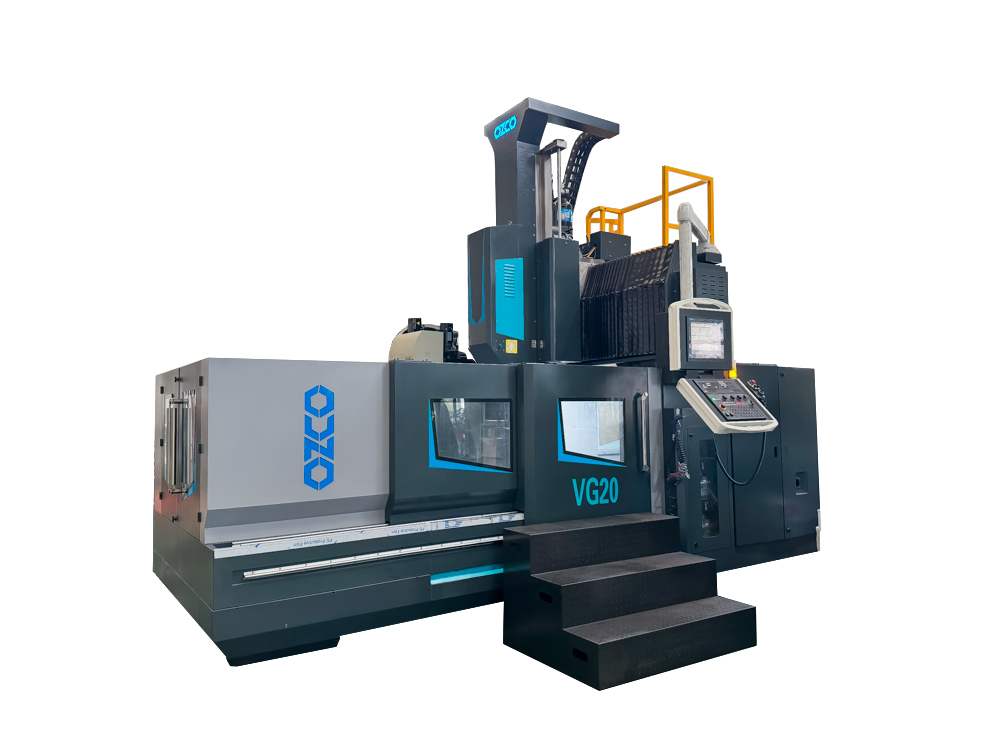

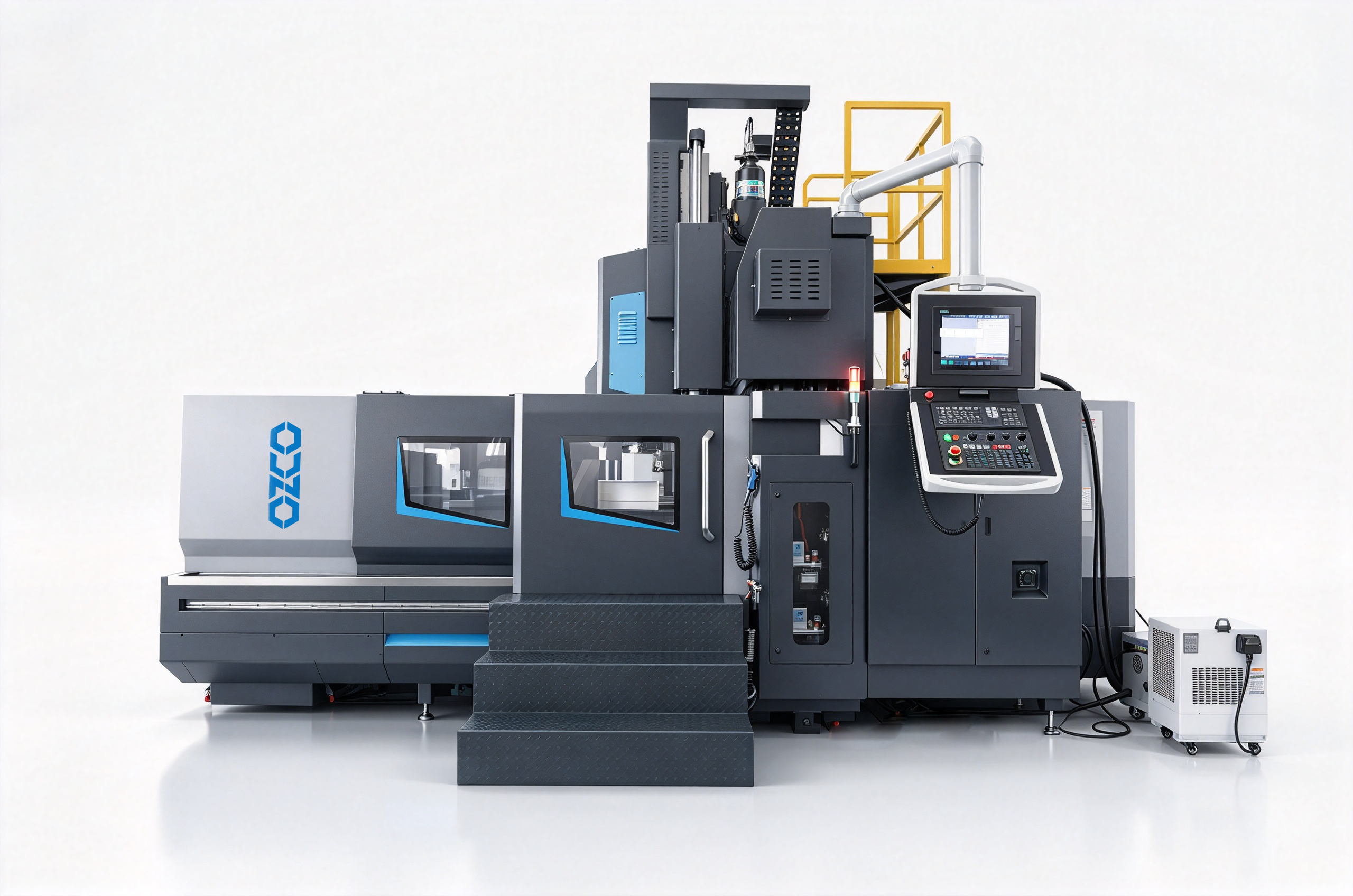

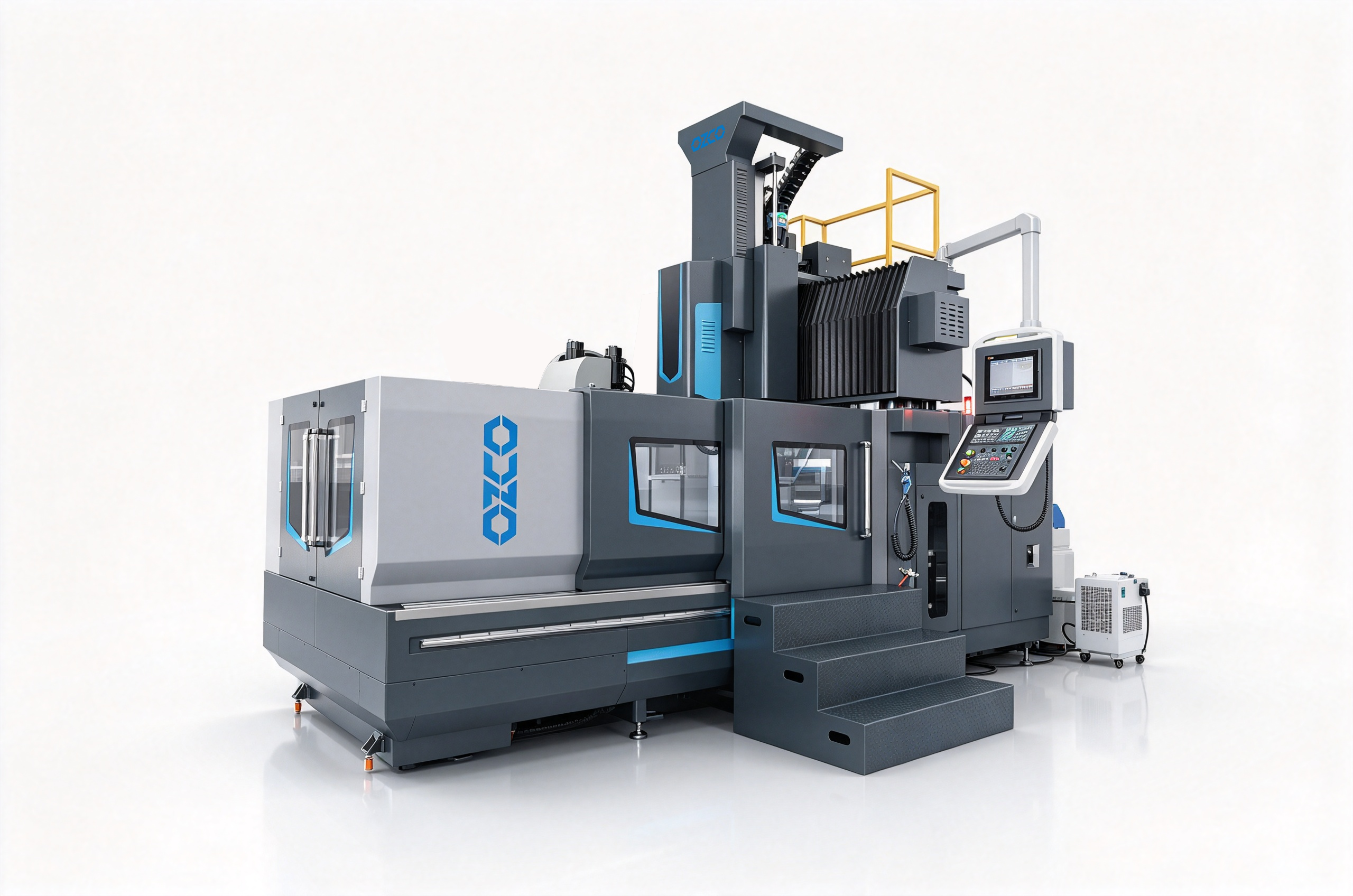

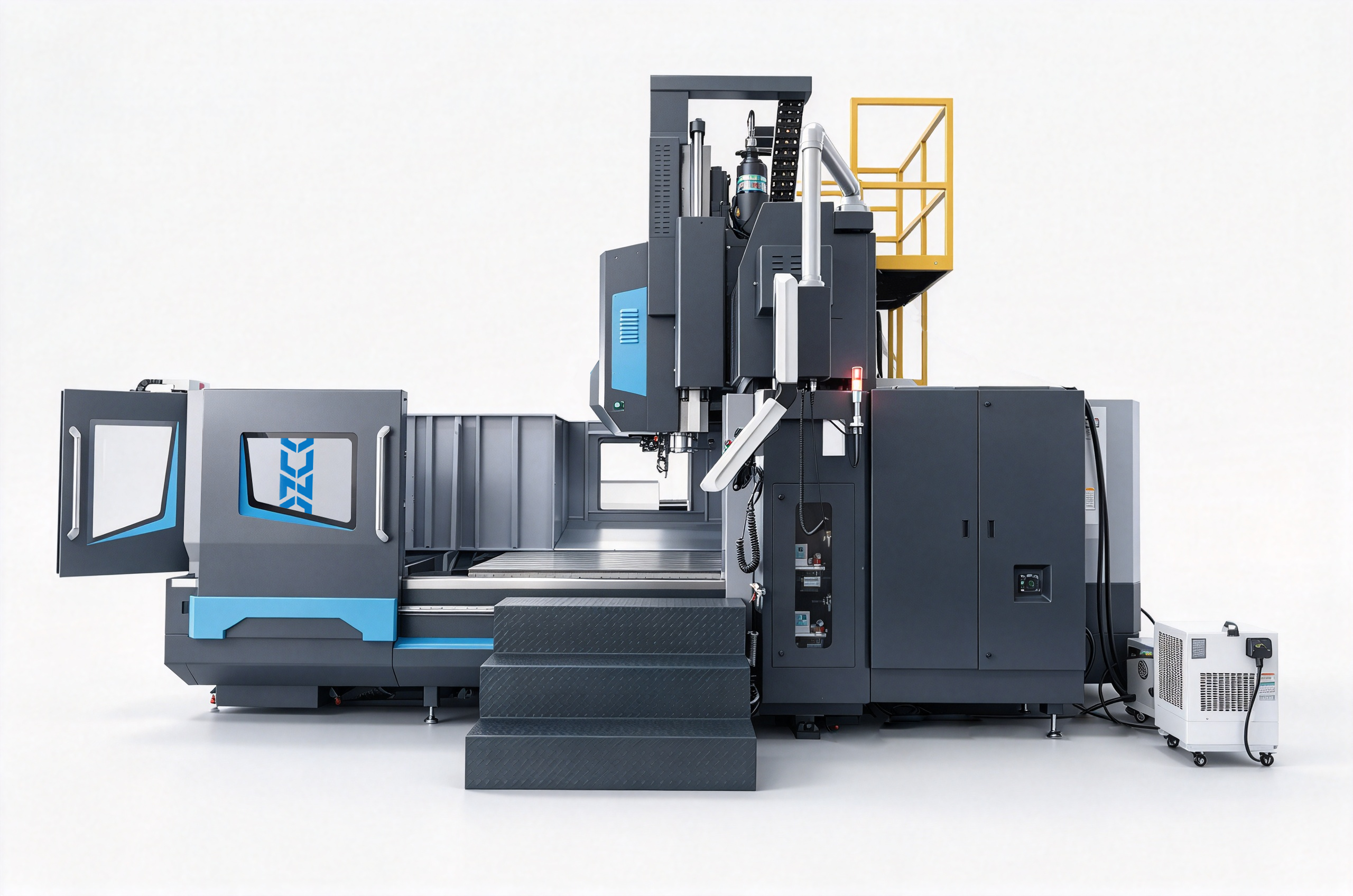

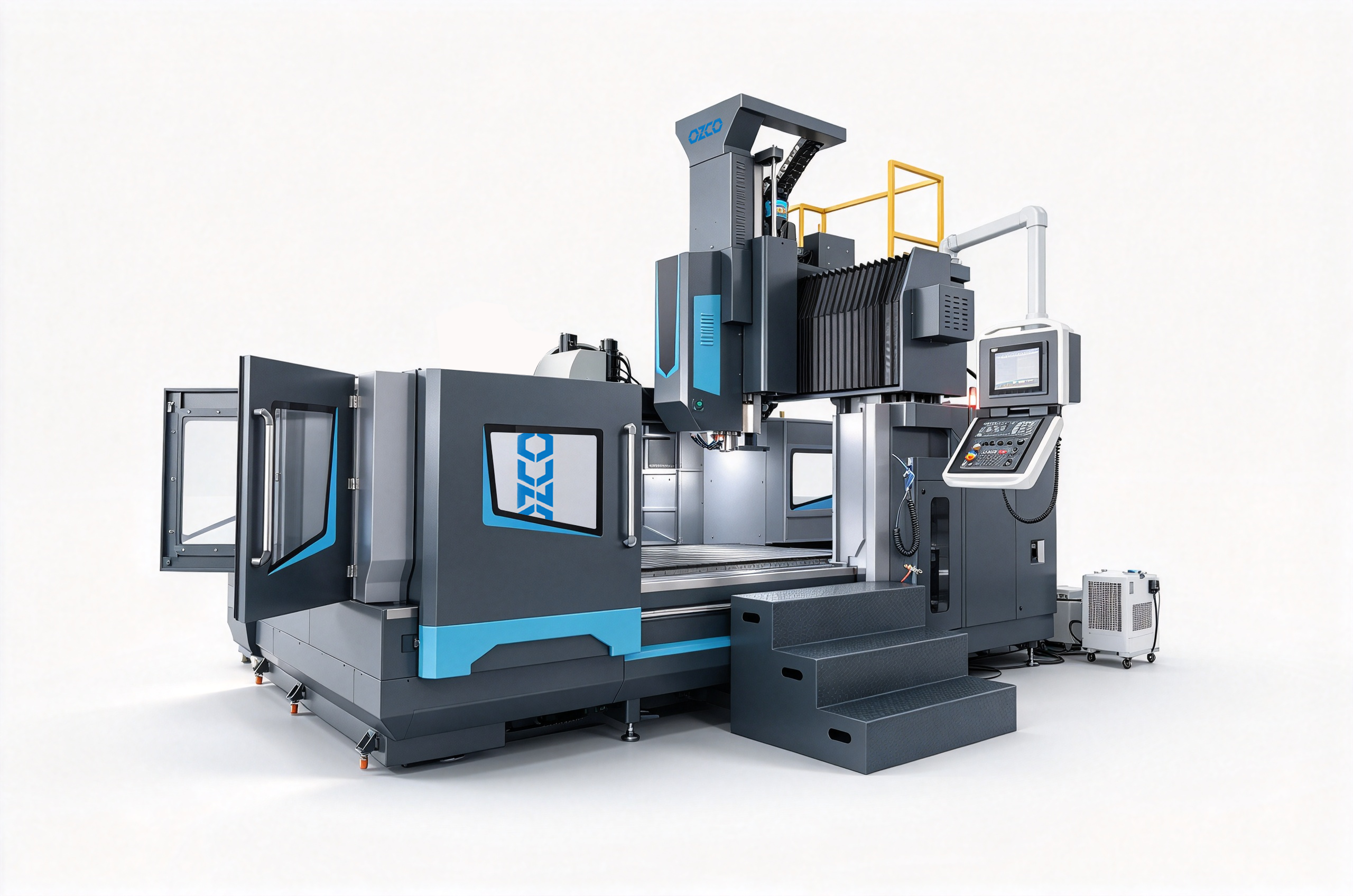

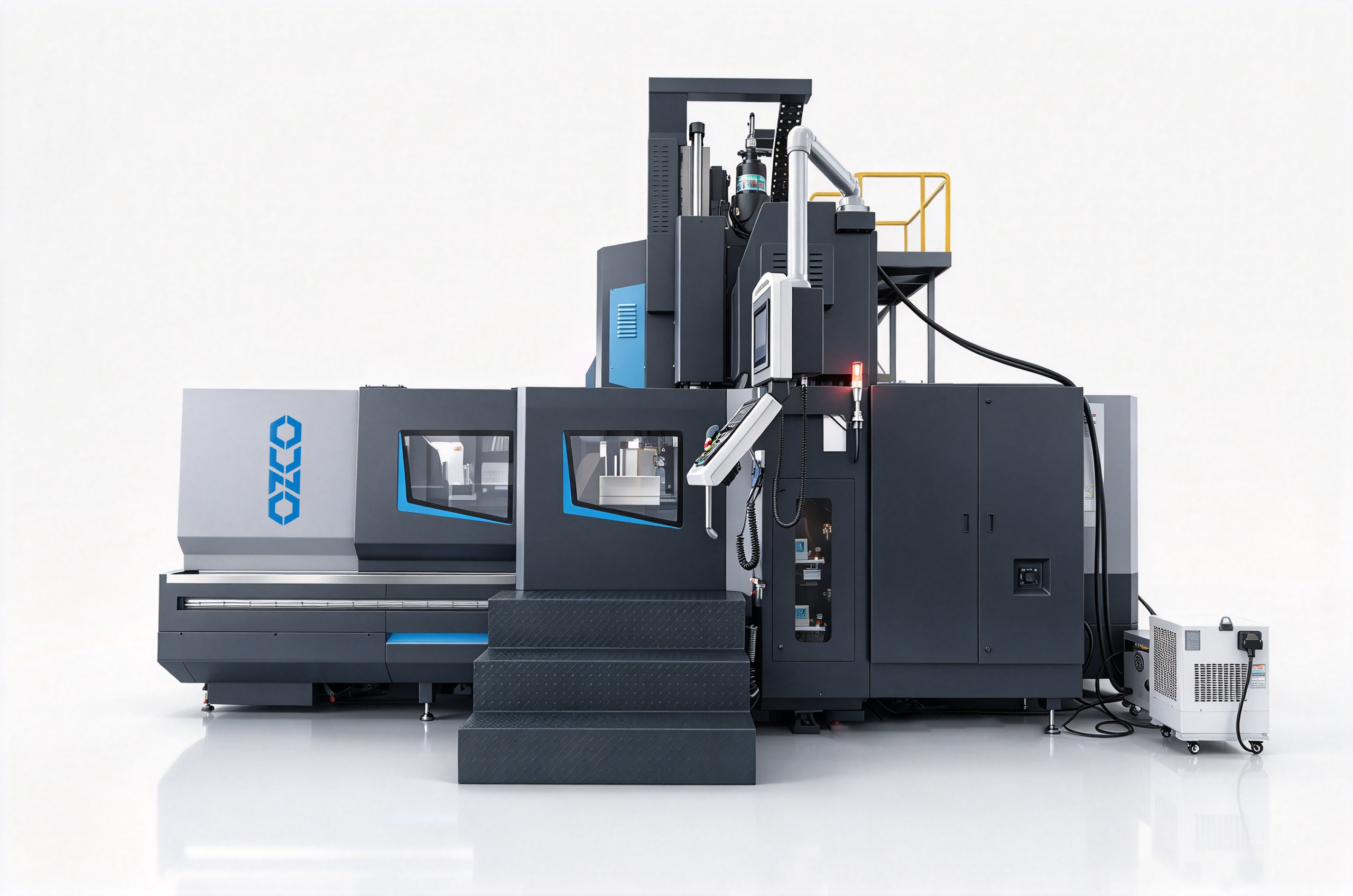

VG20 CNC Double Column Vertical Machining Center
- Technical Detail
- Description
- Involvement of Shipment
- Optional Accessories
| VG20 CNC Double Column Vertical Machining Center | |
|---|---|
| Main Motor Power | 11/15 w |
| Table Size | 1600x1300 mm |
| T-slot Size | 22/9/130 mm |
| Max. Table Capacity | 1600 kg |
| X,Y,Z Travel | 2000, 1500, 750 mm |
| Distance Between Two Gantry Columns | 1600 mm |
| Spindle-Table Distance | 150-900 mm |
| Spindle Speed | 6.000 rpm |
| Spindle Taper | BT50 |
| Spindle Diameter | 160 mm |
| X,Y,Z Rapid Feed Speed | 15,15,12 m/min |
| Cutting Feet Speed | 1-8000 mm/min |
| Magazine Capacity | 30T Disc Type ATC |
| Control Unit | Mitsubishi M80A |
| Driver and Encoder | Mitsubishi |
| Main Motor Torque Power | 70/118NM |
| X axis Linear Roller Guideway Size | RGW45CC3R*2 |
| Y axis Linear Roller Guideway Size | RGH45CA2R*2 |
| Leadscrew Diameter X | R50-12T5-2405-2685 |
| Leadscrew Diameter Y | R40-8K5-1795-2075 |
| Leadscrew Diameter Z | R40-6K5-980-1278 |
| Positioning Accuracy X/Y/Z | 0,02/0,02/0,018 |
| Repeatability Positioning Accuracy X/Y/Z | 0,015/0,015/0,015 |
| Machine Dimensions | 5600x3300x3750 |
| Weight | 14.000 kg |
Main Components
• Ball screws (HIWIN, Taiwan)
• 3 Axes roller type linear guideways (HIWIN, Taiwan)
• Bearings (NSK, Japan)
• Spindle (ROYAL, Taiwan)
• Central lubrication unit (HERG, Japan)
• Pneumatic unit (AIRTAC, Taiwan)

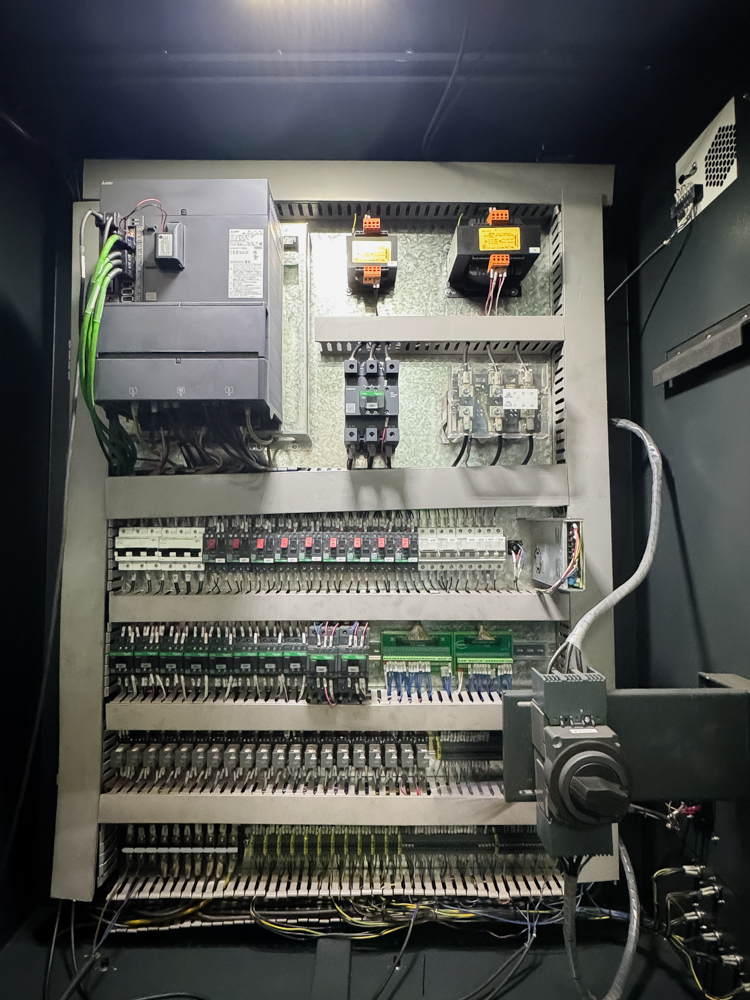

• Electrical system (SCHNEIDER, France)
• Tool magazine ARM type (POJU, Taiwan)

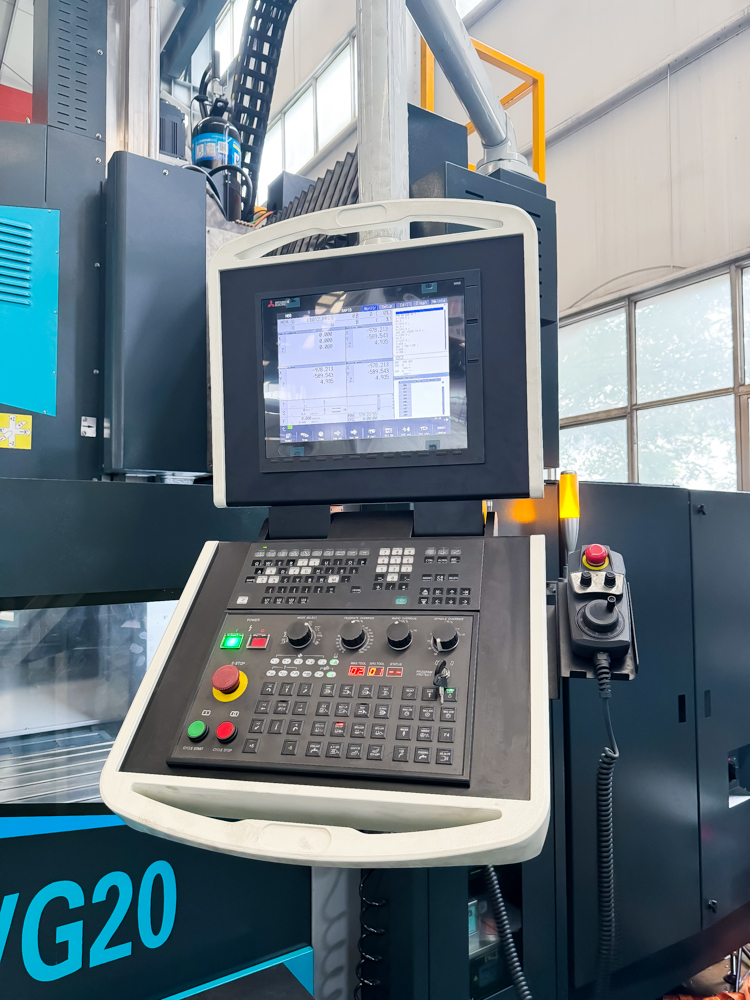

• Mitsubishi M80A controller with
• 15" LCD screen control panel for all models
• 20 bar CTS (Coolant Through Spindle)
• Air gun and coolant gun
• Rigid tapping
• M30 automatic power off
• Full moulding package in controller

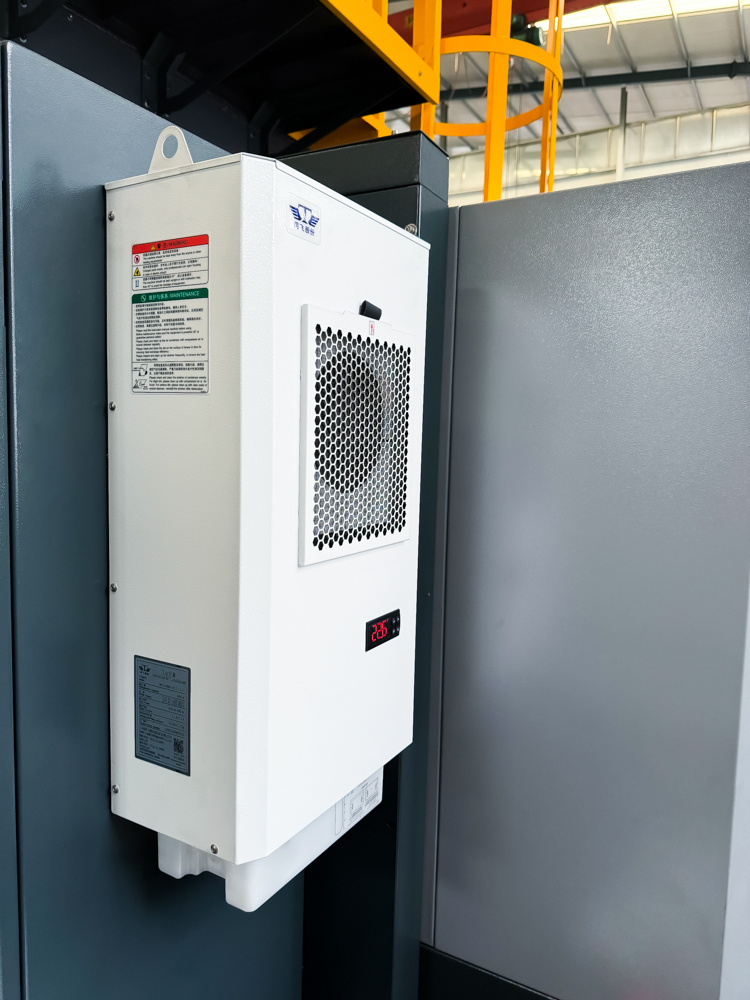

• Heat exchanger on electrical cabinet
• Leveling screws and pads
• Worklight
• Alarm light 3-colored

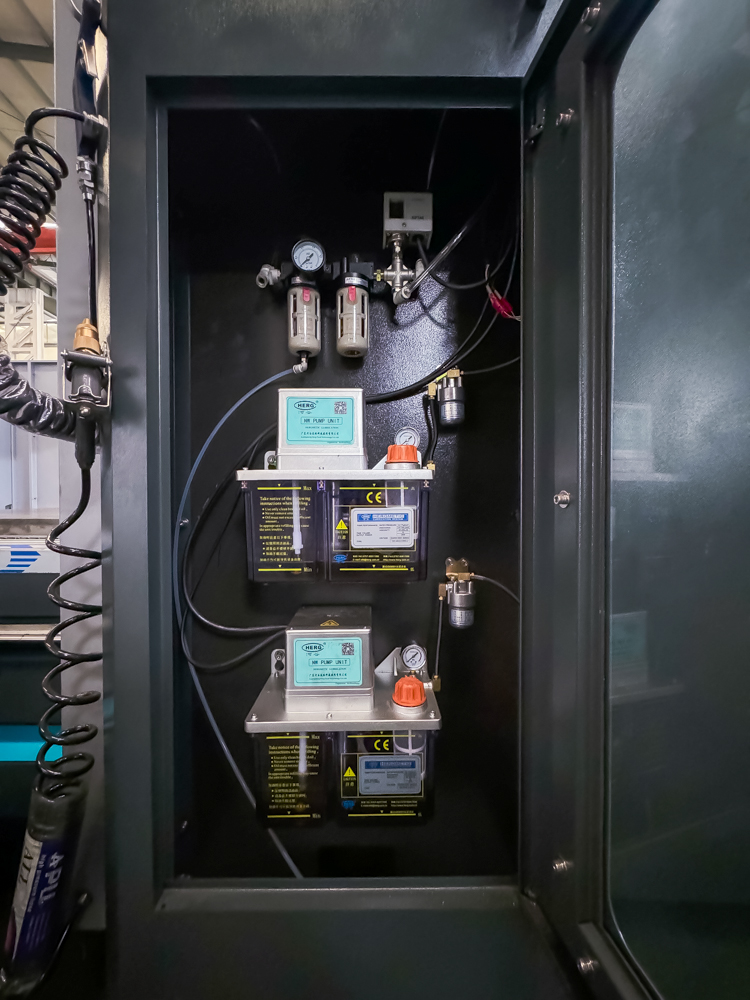

• Central lubrication unit
• 3 Axes roller type linear guideways
• Telescopic cover&pretensioned for 3-axes
• Spindle head coolant system
• Air through spindle
• RS232 interface
• P05 10.000 soft corners function in controller
• MPG Handwheel
• Fully enclosed cabin
• 2 spiral type + 1 chain type conveyor
• Ready electrical harness system for cnc rotary table
• CE modification, transformer for 380V/50Hz
• Oil skimmer to separate guideway oil and coolant
• Heidenhain linear scales
• Fagor linear scales
• Automatic rectangular milling head
• 90° milling head
• Tool automatic setting
• Vertical/Horizontal tool magazine
• CNC rotary table
• ZF gear box
• 50 bar CTS (Coolant Through Spindle)
