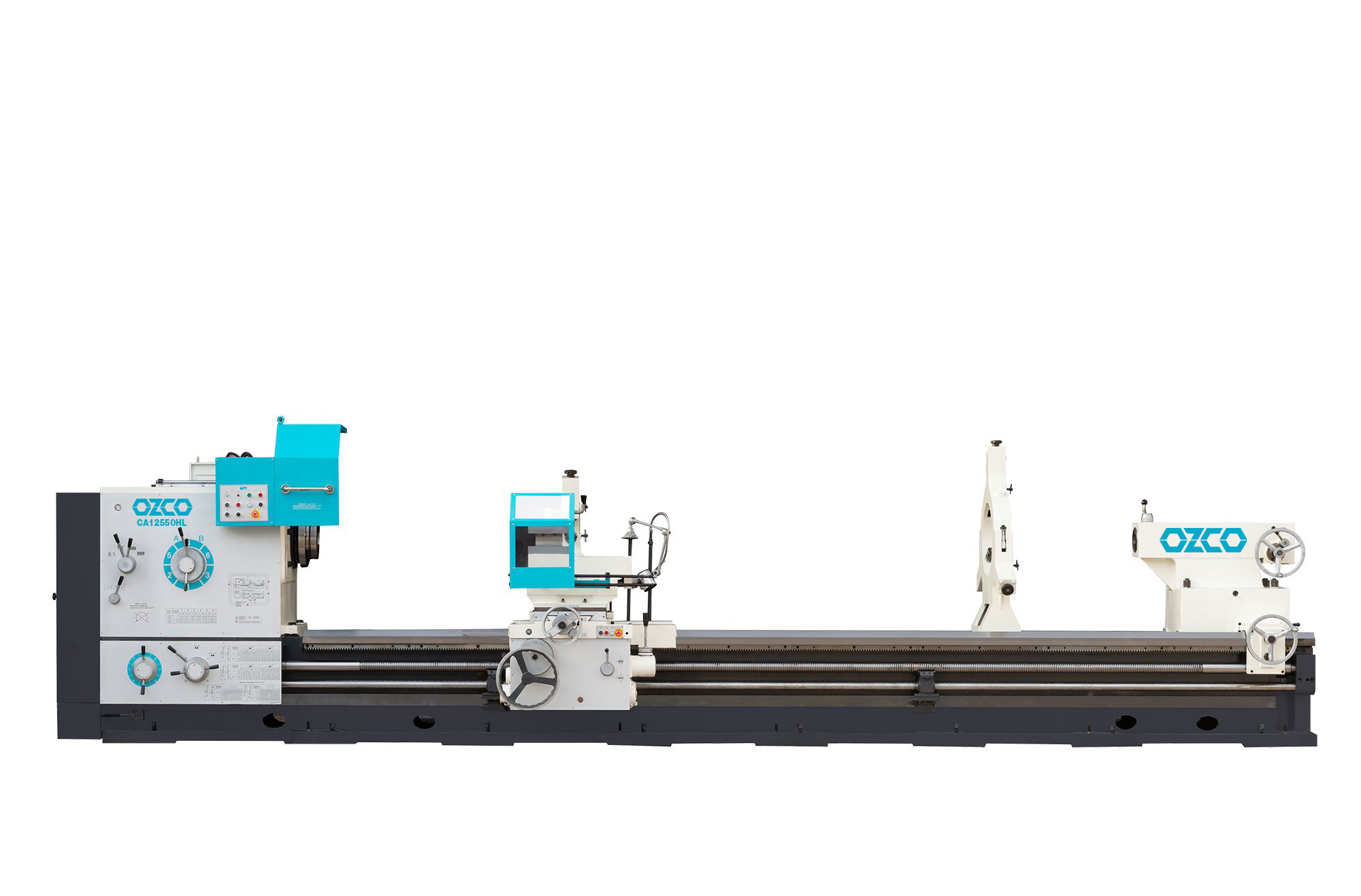

CA14060HL Heavy-Duty Lathe Machine
- Technical Detail
- Description
- Involvement of Shipment
- Optional Accessories
| CA14060HL Heavy-Duty Lathe Machine | |
|---|---|
| Main Motor Power | 22 kW, 400 V w |
| Swing Diameter over Machine Bed | 1400 mm |
| Swing Diameter over Cross Slide (Carriage) | 1015 mm |
| Bed Width | 755 mm |
| Center Width | 6000 mm |
| Maximum Load Capacity | 6000 kg |
| Speed Range | 3.15-315 (ileri) / 3.5-291 (geri) rpm |
| Number of Steps | 21 (ileri) / 12 (geri) |
| Spindle Holder | A2-15 |
| Spindle Bore | 130 mm |
| Compound Rest Travel | 580 mm |
| Cross Slide Travel | 300 mm |
| Tailstock Spindle (Taper) | MK6 |
| Tailstock Spindle Diameter | 160 mm |
| Tailstock Sleeve Stroke | 300 mm |
| Longitudinal Feed | 0,1-12 (56 adet) mm/rev |
| Cross Feed | 0,05-6 (56 adet) mm/rev |
| Pitch–Metric | 1-120 (44 adet) mm |
| Pitch–Inches | 0,25-28 (31 adet) |
| Modular Thread Range | 0,5-60 (45 adet) |
| Diametral Pitch Range | 0,5-56 (38 adet) |
| Tool Holder | 45x45 mm |
| Machine Size | 9100x2150x1700 mm |
| Weight | 16.700 kg |
• Turcite-B coated Slideways
• Hardened and grinded slideway
• Slideways Hardness – HRC48
• Heavy-duty 780 mm width machine bed
• Hydraulic clutch system
• Chuck and Tool holder safety shields
• Heavy-duty rigid cast iron machine bed
• Equipped with joystick featuring practical easy use
• Machine lamp
• Coolant System
• CE Standard
• 4 jaw lathe chuck Ø1250 mm
• Steady Rest 50-425 mm
• Steady Rest 285-635 mm
• Follow Rest 50-220 mm
• Live center
• Dead center
• Quadruple tool holder
• Machine lamp
• Protective Chuck and Tool Holder Shields
• Coolant System
• Operating Tools
For models with load capacity of 10000 kg: 240 mm heavy-duty live center; wide steady rest and 30kW motor
